What Is a Compiler? A Complete Guide to How Compilers Work

A compiler is a computer program that translates source code written in a programming language into another form of code that a computer can execute or that another program can process. In many cases, a compiler converts a high-level programming language into machine code, assembly code, object code, or an intermediate representation. This process allows programmers to write software using languages that are easier for humans to understand while still producing instructions that can be executed by a CPU.

Understanding what a compiler does is fundamental to understanding programming languages, software development, compiler design, and computer programming. Languages such as C, C++, Rust, Go, and many others use compilation as an important part of their implementation. Other languages, such as Python, can use an interpreter-oriented execution model while also using compilation internally to produce bytecode.

A compiler is not simply a tool that changes one file into another. Modern compilers perform several sophisticated tasks, including lexical analysis, parsing, semantic analysis, optimization, code generation, error handling, and sometimes linking. These stages work together to transform human-readable programming code into a form that can eventually be executed by a computer.

What Is a Compiler?

A compiler is a program that translates code from a source language into a target language or another executable representation. When a programmer writes source code in a high-level language, the computer’s processor cannot normally execute that source code directly. The compiler bridges this gap.

For example, a programmer may write:

#include <stdio.h>

int main() {
    printf("Hello, world!");
    return 0;
}

This is source code written in C. A C compiler can process the code and produce an object file, executable, or other intermediate outputs depending on the compilation process.

In simplified terms:

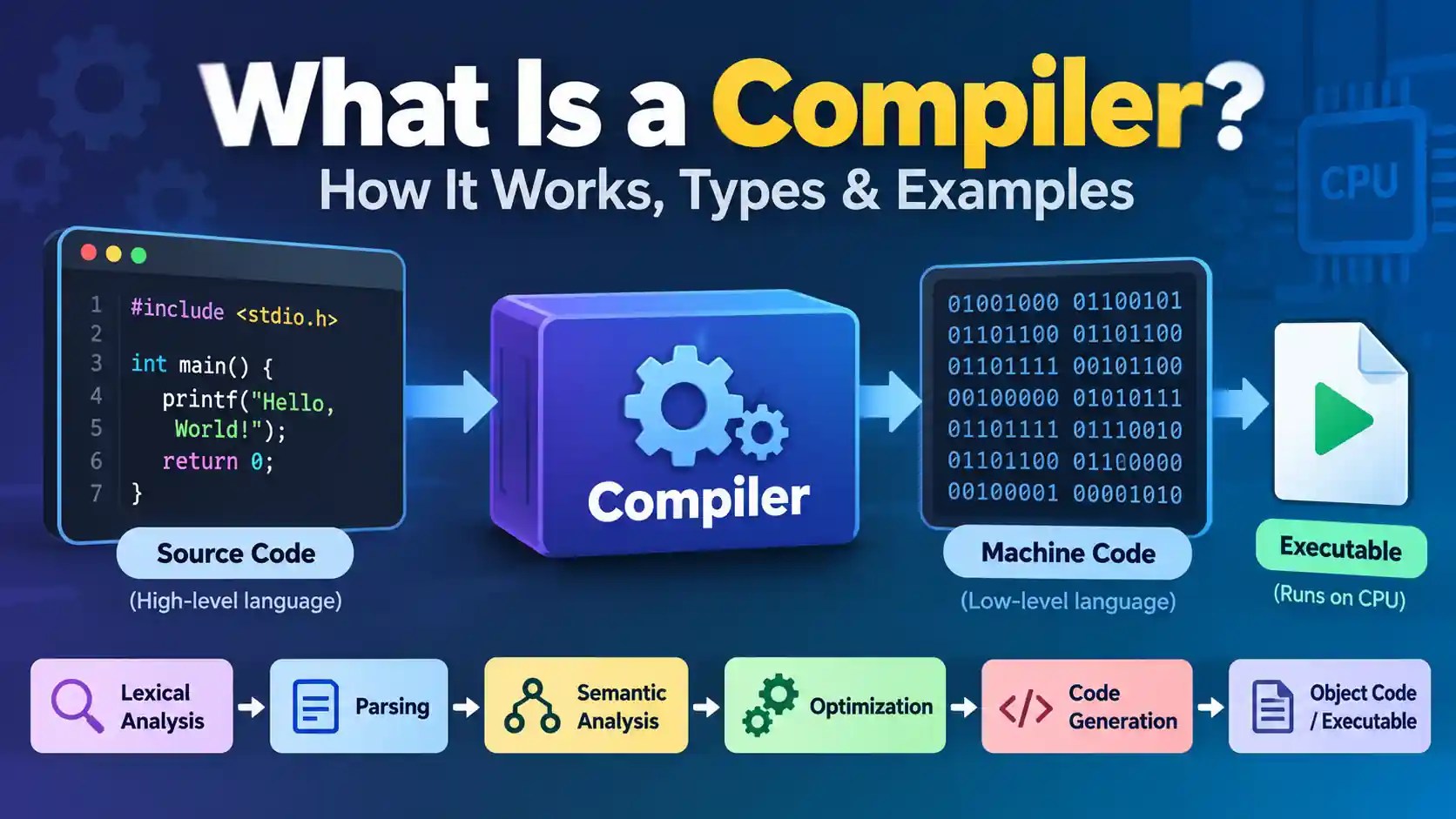

Source code → Compiler → Object code / Machine code → Executable program

The exact process depends on the programming language, compiler, operating system, processor architecture, and implementation.

A compiler may translate a high-level language directly into machine code, or it may first translate it into an intermediate language or bytecode. Some compilers produce assembly code that is subsequently processed by an assembler.

Why Do We Need a Compiler?

Computers ultimately execute instructions represented in a form understood by their processor. Humans, however, prefer abstractions such as variables, functions, loops, classes, and meaningful names.

A compiler allows a programmer to write code in a higher-level language instead of directly writing machine language.

For example, this:

int total = price + tax;

is much easier for a programmer to understand than manually specifying processor instructions.

The compiler translates the programmer’s instructions into lower-level instructions that can eventually be executed by a computer.

How Does a Compiler Work?

To understand how a compiler works, it is useful to look at compilation as a sequence of stages. A typical compiler may perform:

1. Lexical analysis
2. Syntax analysis
3. Semantic analysis
4. Intermediate representation generation
5. Optimization
6. Code generation
7. Assembly and linking

Not every compiler uses exactly the same architecture, but these stages represent the basic concepts of compiler construction.

How the Compiler Works With Source Code

The compiler receives source code written in a particular programming language. It then analyzes that code and determines whether it follows the rules of the language.

The compiler must understand:

• Keywords
• Variables
• Operators
• Functions
• Expressions
• Statements
• Types
• Control structures
• Program relationships

It then transforms the source language into a target representation.

The general flow can be represented as:

Source Code
    ↓
Lexical Analysis
    ↓
Parsing
    ↓
Semantic Analysis
    ↓
Intermediate Representation
    ↓
Optimization
    ↓
Code Generation
    ↓
Assembly / Object Code
    ↓
Executable

This is why the statement compiler converts the source program into another representation is an important concept in programming.

What Happens When You Compile Code?

When you compile a program, the compiler reads the source code and processes it according to the rules of its programming language.

For example, when using GCC with C code, a command such as:

gcc program.c -o program

can cause GCC to process the C source and produce an executable.

A simplified compilation pipeline is:

program.c
   ↓
Preprocessing
   ↓
Lexical Analysis
   ↓
Parsing
   ↓
Semantic Analysis
   ↓
Optimization
   ↓
Code Generation
   ↓
Assembly
   ↓
Object File
   ↓
Linking
   ↓
Executable

The exact internal implementation is more complex, but this model provides a useful introduction.

Lexical Analysis: The First Major Stage

Lexical analysis is the process of converting a stream of characters into meaningful tokens.

A compiler typically uses a component called a lexer or scanner for this task.

Consider:

int age = 25;

The lexer can identify tokens such as:

int
age
=
25
;

Each token has a category. int is a keyword, age is an identifier, = is an operator, and 25 is a numeric literal.

What Does a Lexer Do?

The lexer reads the source program character by character and groups characters into tokens.

For example:

total = price + tax;

may become:

IDENTIFIER(total)
ASSIGN
IDENTIFIER(price)
PLUS
IDENTIFIER(tax)
SEMICOLON

Whitespace and comments section content may often be removed or ignored during this stage because comments generally do not affect program execution.

Lexical Errors

If the source contains an invalid character or malformed token, the lexical stage may report an error.

For example, a language might reject a character that has no valid meaning in the source language.

The goal of lexical analysis is to transform raw programming code into a structured token stream that later compiler stages can understand.

Parsing and Syntax Analysis

After lexical analysis, the compiler needs to determine whether the sequence of tokens follows the grammar of the programming language.

This is the job of the parser.

Parsing is sometimes described as syntax analysis.

The parser receives tokens from the lexer and attempts to construct a structural representation of the program.

For example:

x = 10 + 20;

can be understood as an assignment expression containing an arithmetic expression.

What Does a Parser Do?

A parser checks whether the source follows the grammar rules of the language.

A programming language might define an assignment approximately as:

assignment → identifier "=" expression

The parser uses rules like these to understand how individual tokens relate to one another.

If the programmer writes:

x = ;

the parser can detect that the expression is incomplete.

Abstract Syntax Tree

A successful parser commonly produces an AST, or Abstract Syntax Tree.

An AST represents the logical structure of the program rather than preserving every character exactly as written.

For example:

Assignment
├── Variable: x
└── Addition
    ├── 10
    └── 20

The AST is an important data structure used by many compilers.

Semantic Analysis

Correct syntax does not necessarily mean that a program is logically valid according to the rules of the language.

This is where semantic analysis becomes important.

For example:

int number = "hello";

The syntax may look structurally valid, but assigning a string to an integer variable may violate the language’s type rules.

During semantic analysis, the compiler may check:

• Data types
• Variable declarations
• Scope
• Function arguments
• Return types
• Type compatibility
• Name resolution
• Other language-specific rules

Semantic analysis gives the compiler a deeper understanding of what the program means.

Syntax Errors vs. Semantic Errors

A syntax error occurs when code violates the grammar.

For example:

int = 10;

A semantic error can occur when the structure is valid but the meaning is not allowed.

For example:

int x = "hello";

The distinction is important when learning compiler design because a compiler must understand both the structure and meaning of code written by the programmer.

Intermediate Representation

Many modern compilers do not immediately translate the AST into final machine instructions.

Instead, they create an intermediate representation, commonly called IR.

An intermediate representation provides a form between the source language and the target machine.

For example:

Source Code
    ↓
AST
    ↓
IR
    ↓
Optimized IR
    ↓
Machine Code

An IR can make compiler implementation more flexible.

A compiler targeting multiple CPU architectures can potentially use the same front end while providing different back ends for different processors.

Why Is IR Useful?

An intermediate representation makes it easier to perform:

• Optimization
• Analysis
• Transformation
• Architecture-specific code generation
• Reuse of compiler components

Some systems use an intermediate language or bytecode instead of directly producing native machine instructions.

Compiler Optimization

Optimization attempts to improve generated code while preserving the program’s intended behavior.

A compiler may optimize code to:

• Reduce execution time
• Reduce memory usage
• Remove unnecessary operations
• Improve CPU utilization
• Reduce executable size
• Make better use of processor instructions

For example, a compiler may recognize that:

int x = 10 * 20;

always produces the same value and can calculate the result during compilation rather than during execution.

Optimization is a major area of compiler design and research.

Common Optimization Techniques

Compilers may perform techniques such as:

• Constant folding
• Dead-code elimination
• Common subexpression elimination
• Loop optimization
• Function inlining
• Register allocation
• Instruction selection

The amount and type of optimization depend on the compiler and its settings.

Code Generation

After analysis and optimization, the compiler needs to generate code for the target environment.

This stage is known as code generation.

The compiler may generate:

• Machine code
• Assembly code
• Bytecode
• Object code
• Another intermediate representation

For a native compiler, the generated instructions must correspond to the target processor architecture.

From High-Level Code to Machine Code

Consider:

int x = 5 + 3;

A compiler can determine that the result is 8 and eventually generate low-level instructions representing the required operation.

The resulting machine code consists of processor instructions rather than human-friendly statements.

This is one reason a high-level programming language is so useful: the programmer can express the desired behavior without manually specifying every processor instruction.

Object Code and Object Files

Compiler-generated output often includes object code stored in an object file.

An object file contains machine-level code and other information needed during the later stages of building a program.

For example:

program.c
    ↓
program.o
    ↓
program

The .o file may not yet be a complete executable.

It can contain references to functions or symbols that must be resolved during linking.

Linking

The linker combines object files and libraries to produce a final executable.

For example, a C program may use functions provided by standard libraries.

The compiler can produce object code containing references to those functions, while the linker resolves those references and constructs the final executable.

This distinction helps explain why compilation and linking are related but separate steps.

Compiler vs. Interpreter

A common question is whether a compiler or an interpreter is better.

The two approaches differ in how they process programming code.

A traditional compiler generally translates source code into another representation before execution. An interpreter generally executes or evaluates source instructions through an interpreter runtime rather than producing a traditional native executable first.

However, modern language implementations can combine both techniques.

Compilers and Interpreters

The distinction between compilers and interpreters is not always absolute.

For example, Python source code is commonly compiled into bytecode, which is then executed by the Python virtual machine.

Therefore, saying that one language is simply “compiled” and another is simply “interpreted” can sometimes hide important implementation details.

Compiler or an Interpreter: How Are They Different?

A traditional native compiler may provide:

• Ahead-of-time translation
• Native executable generation
• Extensive optimization
• Strong static analysis

An interpreter may provide:

• Interactive execution
• Flexible runtime behavior
• Easier experimentation
• Direct execution through a runtime system

Some implementations combine compilation and interpretation, while others use just-in-time compilation.

Compiled Languages

A compiled language is commonly understood as a language whose implementations frequently use compilation to translate source code into a lower-level representation before execution.

C is a classic example.

When C source code is compiled, the compiler may produce assembly or object code that is eventually linked into an executable.

C Compiler Example

A c compiler such as GCC can compile C code into native machine instructions.

For example:

gcc hello.c -o hello

The compiler reads the C source file and processes it through several stages before producing an executable.

GCC is widely used for C and other languages and demonstrates how a practical compiler can integrate preprocessing, compilation, assembly, and linking into a convenient toolchain.

How to Write a Compiler

If you want to write a compiler, you do not need to begin by implementing an enormous industrial compiler.

A better learning approach is to build a compiler for a small language.

A simple language can contain:

• Numbers
• Variables
• Arithmetic
• Assignment
• Conditions
• Functions
• Basic output

The process of making a compiler for such a language teaches many fundamental concepts.

Step 1: Design the Language

Before writing the compiler, define the language.

This is part of language design.

You need to decide:

• What keywords exist?
• What variables look like?
• What data types exist?
• How are expressions written?
• How are functions declared?
• What operators are supported?
• What statements are allowed?

For example, you might design a simple language like:

let x = 10;
let y = 20;
print x + y;

The compiler needs to understand this source language and determine what output should be generated.

Step 2: Build a Lexer

The next step is to create a lexer.

The lexer recognizes tokens such as:

LET
IDENTIFIER
NUMBER
EQUALS
SEMICOLON
PRINT
PLUS

This introduces you to lexical analysis and teaches how a compiler handles raw source code.

Step 3: Build a Parser

Next, write a parser that consumes those tokens.

The parser should construct an AST representing the program.

For example:

Program
├── Variable Declaration
│   ├── x
│   └── 10
└── Print
    └── Addition
        ├── x
        └── y

For a larger language, you can also use a parser generator to help construct the parser from a grammar.

Step 4: Perform Semantic Analysis

Once parsing works, implement semantic rules.

You may create a symbol table that records:

x → integer
y → integer

The compiler can then detect problems such as undefined variables or incompatible types.

Step 5: Create an Intermediate Representation

You can then create an IR that provides a simpler representation of the program.

For example:

LOAD 10
STORE x
LOAD 20
STORE y
ADD
PRINT

This representation can later be optimized and translated into the target platform.

Step 6: Generate Code

Now implement code generation.

The compiler needs to transform the IR into target instructions.

Depending on the project, the target could be:

• Assembly
• Machine code
• Bytecode
• Another language

For a beginner compiler, generating assembly code can be an excellent way to understand how high-level programming eventually becomes low-level instructions.

Can You Write a Compiler From Scratch?

Yes, it is absolutely possible to write a compiler from scratch.

However, a production-quality compiler is a substantial software project.

A compiler from scratch can be much smaller if the language is intentionally limited.

For example, you could create a compiler that supports only:

numbers
+
-
*
/
variables
print

Such a project is sufficient to teach the fundamental principles of compiler construction.

As the language grows, you can add functions, arrays, structures, types, loops, conditionals, modules, and other features.

What Language Is a Compiler Written In?

A compiler can be implemented in many different programming languages.

A compiler is not required to be written in the same language that it compiles.

For example, a compiler for a new programming language could initially be written in C.

Later, once the language becomes powerful enough, developers might rewrite the compiler in the language itself. This process is often associated with bootstrapping.

Why Is a Compiler Written in Another Language?

An implementation language can be chosen based on:

• Performance
• Portability
• Existing libraries
• Developer expertise
• Memory control
• Ease of development
• Existing compiler infrastructure

A compiler is simply software, so its implementation can be written using another programming language.

Can a Compiler Compile Itself?

Yes.

A compiler can eventually become compiler is written in the same programming language that it compiles.

This is known as a self-hosting compiler.

For example, imagine a new language called Nova.

Initially:

Nova compiler → written in C

After Nova becomes sufficiently mature:

Nova compiler → written in Nova

The compiler can then compile its own source code using an earlier version of the compiler.

This process is an important concept in compiler writing and compiler development.

Bootstrapping a Compiler

Bootstrapping involves developing a compiler using an existing implementation and gradually moving toward a self-hosted implementation.

A simplified process might look like:

Compiler v1
written in C
      ↓
Compiles Nova
      ↓
Nova compiler source
written in Nova
      ↓
Compiler v2

The process can become increasingly sophisticated as the language and compiler mature.

This approach is useful when developing a new programming language because the first implementation can rely on an established language.

Compiler Implementation Strategies

There are several approaches to implementing a compiler.

Native Code Generation

The compiler directly produces machine code for a target CPU.

This can provide efficient native executables but requires architecture-specific work.

Assembly Generation

The compiler generates assembly code, which is then processed by an assembler.

This can simplify the compiler’s code-generation stage because the assembler handles the conversion from assembly instructions to machine-level object code.

Bytecode Generation

The compiler can produce bytecode for a virtual machine.

The virtual machine then executes the bytecode or compiles it further using techniques such as just-in-time compilation.

Transpilation

A compiler can also translate one high-level language into another language.

For example:

Source Language
      ↓
Compiler
      ↓
Another Language

The generated code can then be processed by another compiler or runtime.

Compiler Architecture

Compiler architecture is often divided into a front end, middle end, and back end.

Compiler Front End

The front end typically handles:

• Lexical analysis
• Parsing
• Semantic analysis
• AST construction
• Initial IR generation

The front end is strongly connected to the source language.

Compiler Middle End

The middle end often works on the IR.

It performs analyses and transformations such as optimization.

Compiler Back End

The back end transforms the IR into target-specific code.

It may handle:

• Instruction selection
• Register allocation
• Scheduling
• Machine-specific optimization
• Final code generation

This architecture allows the same language front end to potentially target multiple processor architectures.

Compiler Errors and Debugging

One of the most visible roles of a compiler is identifying errors.

A compiler can detect problems before the program runs.

Examples include:

• Invalid syntax
• Undefined variables
• Type mismatches
• Invalid function calls
• Missing declarations
• Incorrect expressions

Error Handling

Good error handling is an important part of compiler design.

A compiler should ideally provide useful diagnostic information, including:

• The source file
• The line number
• The location of the error
• What was expected
• What was found

For example:

program.c:10:5: error:
expected ';' before '}'

Better diagnostics help the programmer debug the program more efficiently.

Compiler developers therefore spend significant effort making error messages useful and understandable.

High-Level Language vs. Low-Level Language

A high-level language provides abstractions that make programming easier for humans.

Examples include:

• Python
• Java
• C++
• JavaScript
• Go
• Rust

A low-level language is closer to the hardware.

Examples include:

• Assembly language
• Machine language

The compiler provides a bridge between these levels.

Why High-Level Programming Is Useful

High-level programming allows developers to work with concepts such as:

objects
functions
variables
classes
arrays
modules

instead of manually controlling every CPU instruction.

The compiler translates these abstractions into lower-level operations.

Compiler vs. Assembler

A compiler and an assembler perform different transformations.

A compiler may transform:

C code
↓
Assembly code

An assembler then transforms:

Assembly code
↓
Machine code / Object code

Therefore:

High-level source
      ↓
Compiler
      ↓
Assembly
      ↓
Assembler
      ↓
Object code

The exact toolchain varies by language and platform.

Compiler vs. Interpreter: Python and C

Python and C provide useful examples of different implementation models.

A typical C workflow may look like:

C source code
↓
C compiler
↓
Machine code
↓
Executable

A Python workflow may involve:

Python source code
↓
Python implementation
↓
Bytecode
↓
Python virtual machine

This does not mean Python has no compilation step. Modern language implementations can contain multiple stages, and the distinction between compiler or an interpreter can therefore be more nuanced than introductory definitions suggest.

Why C Is Important in Compiler Development

C has historically been important in systems programming and compiler implementation.

Many tools and compilers have been written in C because C provides relatively low-level control while remaining portable across many systems.

Learning C can therefore help programmers understand:

• Memory
• Pointers
• Data structures
• CPU-oriented programming
• Assembly concepts
• Operating-system interfaces
• Compiler implementation

A beginner who wants to create a compiler can learn a great deal from studying a small C compiler implementation.

Compiler Design and Software Development

Compiler design connects theoretical computer science with practical software development.

A compiler requires concepts from:

• Algorithms
• Data structures
• Formal languages
• Computer architecture
• Programming languages
• Optimization
• Operating systems
• Software engineering

This makes compiler development a broad field.

A programmer working on a compiler needs to understand both the language’s rules and the machine that eventually executes the generated code.

What Is a Compiler Used For?

A compiler is used whenever source code needs to be transformed into another executable or intermediate representation.

Common applications include:

• Building desktop software
• Developing operating systems
• Creating games
• Building embedded systems
• Developing mobile applications
• Creating programming languages
• Producing web applications
• Developing scientific software
• Creating high-performance applications

Compilers are therefore foundational to modern software engineering.

Advantages of Compilers

Compilers provide several important benefits.

Performance

Native compiled code can execute efficiently because it has been transformed into instructions suitable for the target processor.

Optimization

A compiler can analyze an entire program or significant portions of it and perform sophisticated optimization.

Error Detection

Many programming errors can be detected before the program executes.

Distribution

A compiled program can often be distributed as an executable or other compiled representation without requiring the original source code.

Hardware Awareness

Compiler back ends can generate instructions optimized for particular architectures.

Limitations of Compilers

Compilers also have trade-offs.

Compilation can take time, particularly for large software projects.

Compiler errors can sometimes be difficult for beginners to understand.

A native executable may also need to be rebuilt for a different operating system or processor architecture.

Additionally, compiler development itself is complex because a compiler must correctly implement the rules of its source language and generate valid target code.

How a Compiler Translates a Program

The statement compiler translates source code written in a high-level language can be understood through a complete example.

Suppose the programmer writes:

int result = 10 + 20;

The compiler may process it approximately as follows:

Source code
    ↓
Tokens
    ↓
Syntax tree
    ↓
Semantic checks
    ↓
Intermediate representation
    ↓
Optimization
    ↓
Target instructions
    ↓
Object code

The compiler may recognize that 10 + 20 can be calculated during compilation.

The final generated instructions may therefore be simpler than a literal translation of every source-level operation.

What Is the Difference Between Source Code and Machine Code?

Source code is programming code written by a programmer in a language such as C, C++, Python, Rust, or another language.

Machine code consists of instructions that a processor can execute.

For example:

Source code:
x = x + 1;

may eventually become processor-specific instructions.

The compiler converts the concepts represented by the source into a lower-level form.

This transformation is why programmers can write sophisticated applications without manually entering binary machine instructions.

Is Every Programming Language Compiled?

Not necessarily in the same way.

A programming language is a set of rules for expressing programs. Its implementation determines how those programs are executed.

A language may have:

• A native compiler
• An interpreter
• A bytecode compiler
• A virtual machine
• A just-in-time compiler
• Multiple implementations

The same language can even have several implementations using completely different techniques.

For example, a language may have both an interpreter and a native compiler.

Can You Build a Compiler as a Beginner?

Yes, if you keep the first project small.

A practical learning path is:

Start With a Simple Language

Define only a few features.

numbers
variables
arithmetic
print

Build the Lexer

Learn how characters become tokens.

Build the Parser

Learn how tokens become an AST.

Add Semantic Analysis

Check variables and types.

Generate IR

Create an intermediate representation.

Add Code Generation

Generate assembly, bytecode, or another target.

Add Error Handling

Make compiler errors understandable.

Add Optimization

Once the compiler works, improve the generated code.

This progression teaches the fundamentals of writing compilers without requiring you to understand an industrial compiler all at once.

Tools Used for Compiler Construction

Modern compiler projects can use many tools and frameworks.

Some developers implement every stage manually, while others use libraries and generators.

Common components include:

• Lexers
• Parser generators
• AST libraries
• IR frameworks
• Assemblers
• Linkers
• Debuggers
• Testing frameworks

A parser generator can automatically create portions of a parser from a grammar specification.

This can reduce repetitive implementation work.

Compiler Construction as a Learning Project

Building a compiler is one of the most effective ways to connect programming concepts.

When making a compiler, you encounter:

• Data structures
• Algorithms
• Parsing
• Formal grammar
• Memory management
• Type systems
• Machine architecture
• Optimization
• Code generation

You also learn why programming languages are designed the way they are.

A working compiler demonstrates how a line of code travels from a human-readable abstraction to something the CPU can execute.

Frequently Asked Questions About Compilers

Final Thoughts

A compiler is one of the most important pieces of software infrastructure in computing. It allows programmers to write programs using high-level abstractions while ultimately producing instructions that a computer can execute.

The journey from source code to executable code involves several important stages. Lexical analysis converts characters into tokens. A parser analyzes syntax and can construct an AST. Semantic analysis checks whether the program makes sense according to the language rules. The compiler can then create an intermediate representation, optimize it, and perform code generation to produce assembly, machine code, bytecode, or object code.

Understanding how a compiler works also explains the relationship between a high-level programming language, assembly language, machine language, and the CPU. It shows how a programmer’s line of code can eventually become low-level instructions.

If your goal is to write a compiler, start with a small language rather than trying to reproduce GCC immediately. Build a lexer, create a parser, construct an AST, implement semantic analysis, generate IR, and finally generate target code. From there, you can add optimization, better diagnostics, additional language features, and more sophisticated code generation.

Learning to build a compiler, even a small one, provides a deeper understanding of programming languages, computer architecture, algorithms, and software development. It also makes concepts such as interpreters, compiled code, bytecode, object files, machine code, and programming-language implementation much easier to understand.

A compiler may appear to simply translate one form of code into another, but modern compilers are sophisticated systems that analyze, transform, optimize, and generate code. Whether you are learning C, exploring Python implementations, studying compiler design, or interested in compiler from scratch projects, understanding these fundamentals gives you a strong foundation for exploring how programming languages become working computer programs.

If you want to write a compiler, remember that the first goal should not be complexity. A working compiler for a small language is far more useful for learning than an unfinished attempt at a massive language. Start small, understand every stage, and gradually expand the implementation.
